One-color FlexoPress screen printing machine

339.00 €

Delivery time: within 1 week

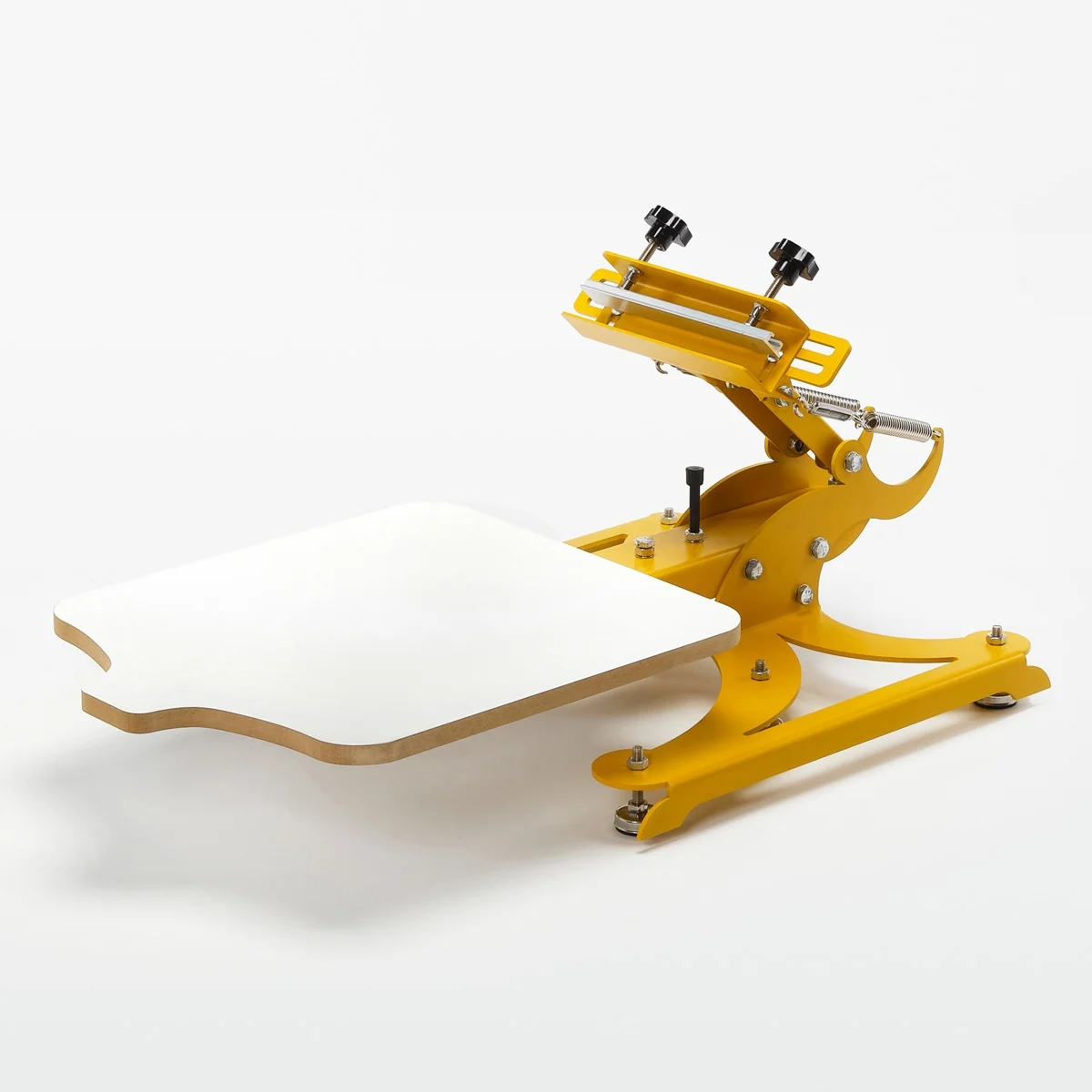

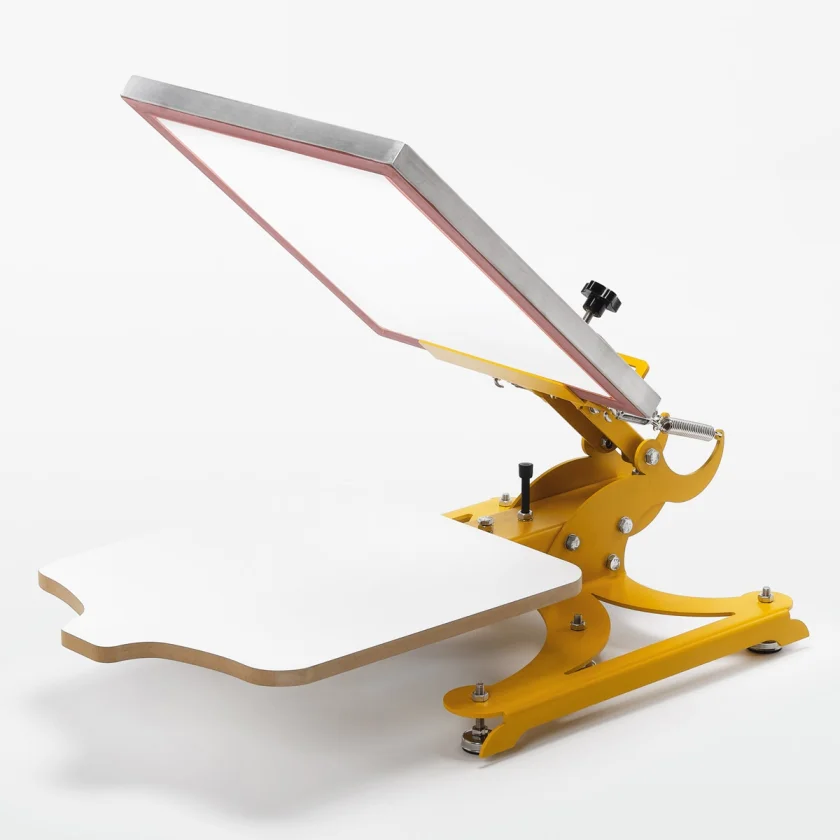

The FlexoPress is a solid, laser-cut, steel screen printing machine designed primarily for monochrome printing. In direct comparison with the HDT150, the FlexoPress scores points in terms of height adjustability, mobility and optional expandability. The FlexoPress can be moved freely and does not need to be screwed to a table or worktop.

Settings

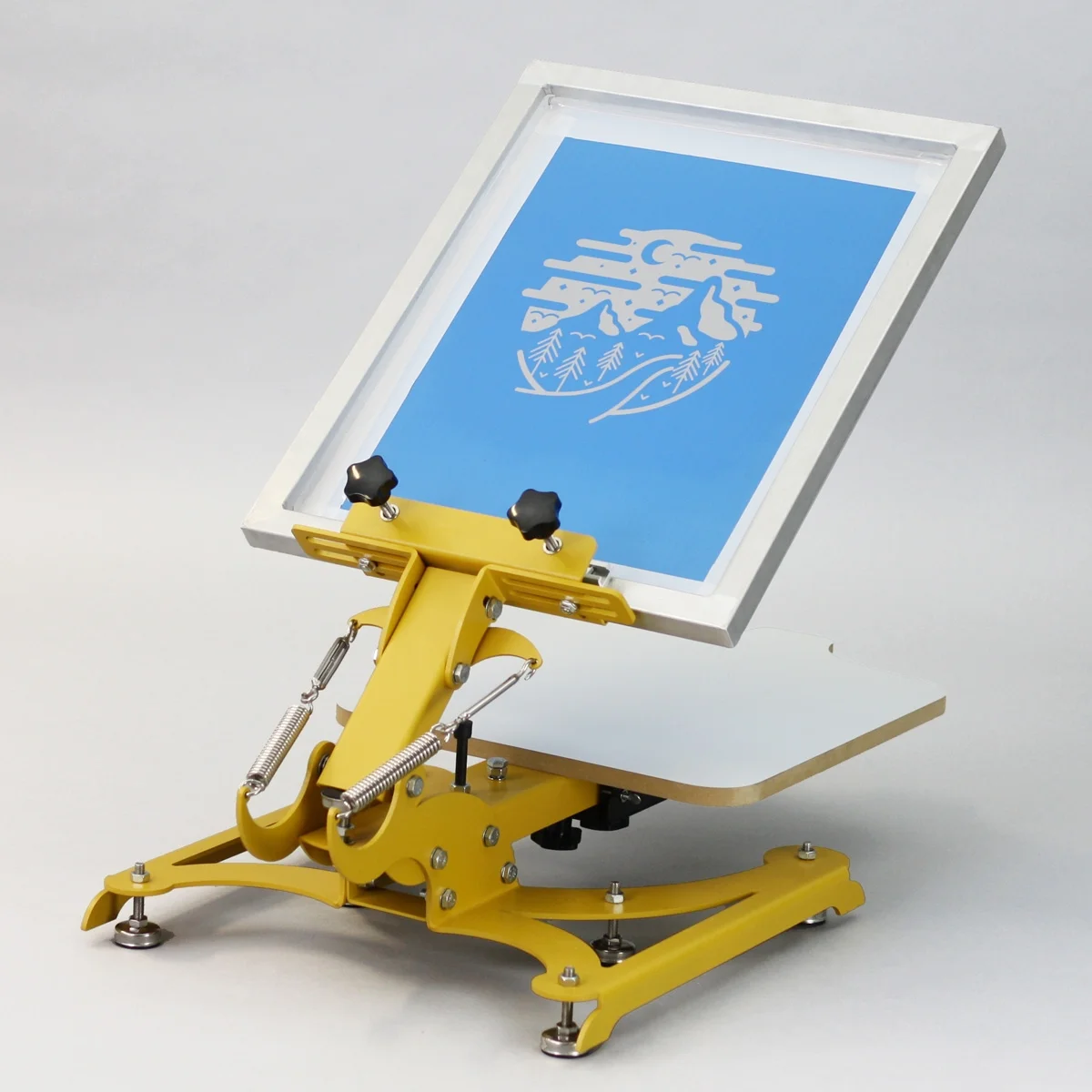

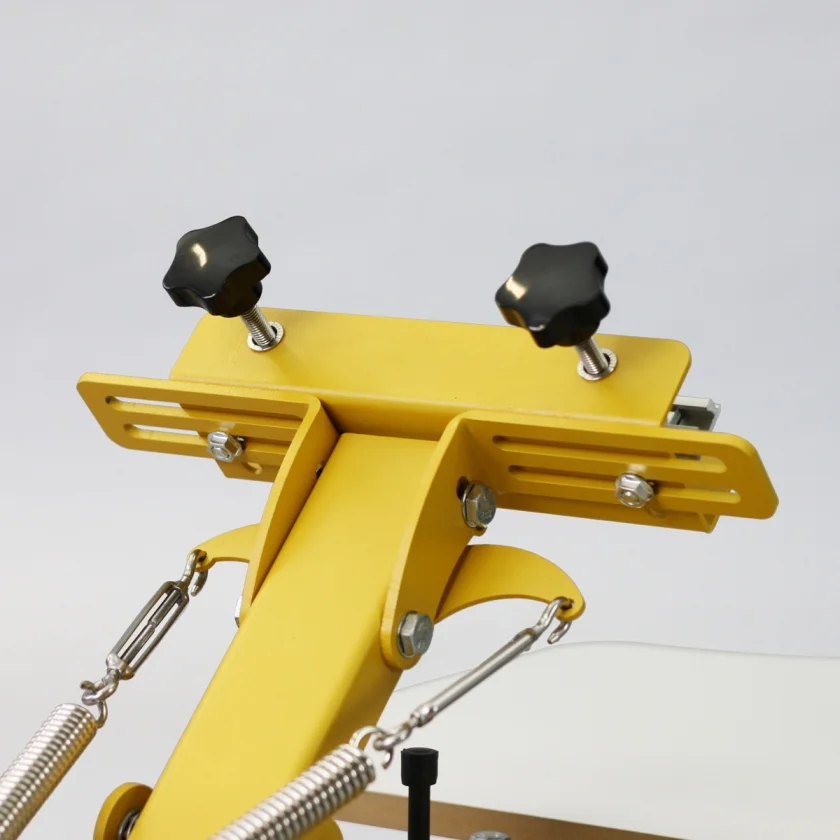

An important advantage results from the flexible adjustment of the height of the print head. In addition to flat materials, substrates with a height of up to 5 cm can also be printed. The print head also allows lateral displacement of the clamped screen printing frame from the right and left by up to 2.5 cm.

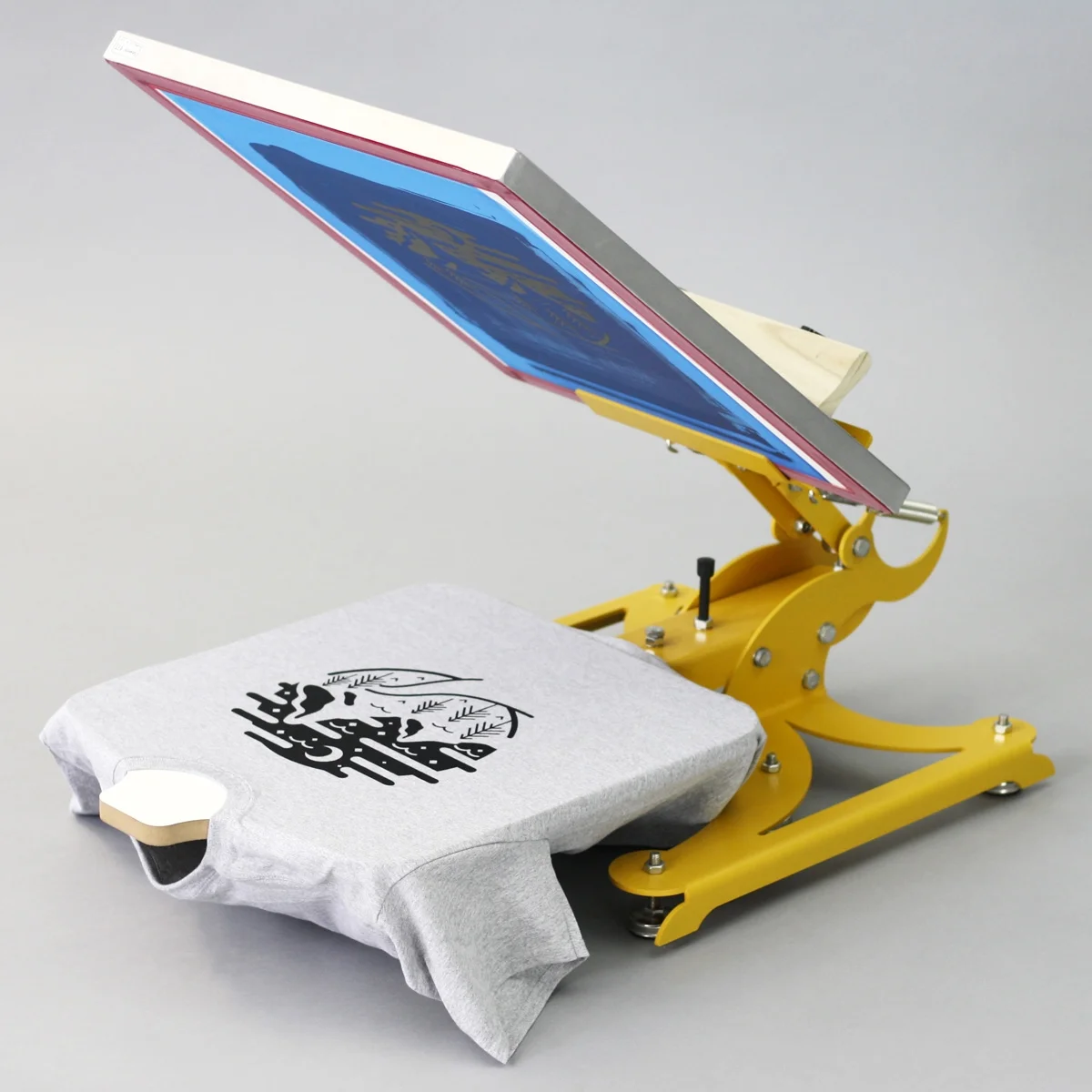

The movable printing plate, which can be moved back and forth, makes it much easier to place the print motif on the t-shirt. The plate is equipped with a quick-change system on the underside. This enables easy and lightning-fast replacement of printing plates of different sizes.

In summary, the FlexoPress is the perfect, mobile screen printing machine for anyone who wants a machine that can be set up in a variety of ways and who wants to print a wide variety of materials such as textile, cardboard, paper or wood panels with a precise fit.

Possible printing area

The printing plate supplied with the FlexoPress is 55 x 45 cm in size and enables large-area A3 and A3+ printing. Since the plate is attached to this device using a quick release system, it can optionally be replaced with smaller plates for children's clothing or sleeve printing.

Easy construction

The device is delivered 90% pre-assembled. It only takes a few steps to get the machine ready for use. Of course, the correct mounting tool for setting it up is included with the device.

Possible frame sizes

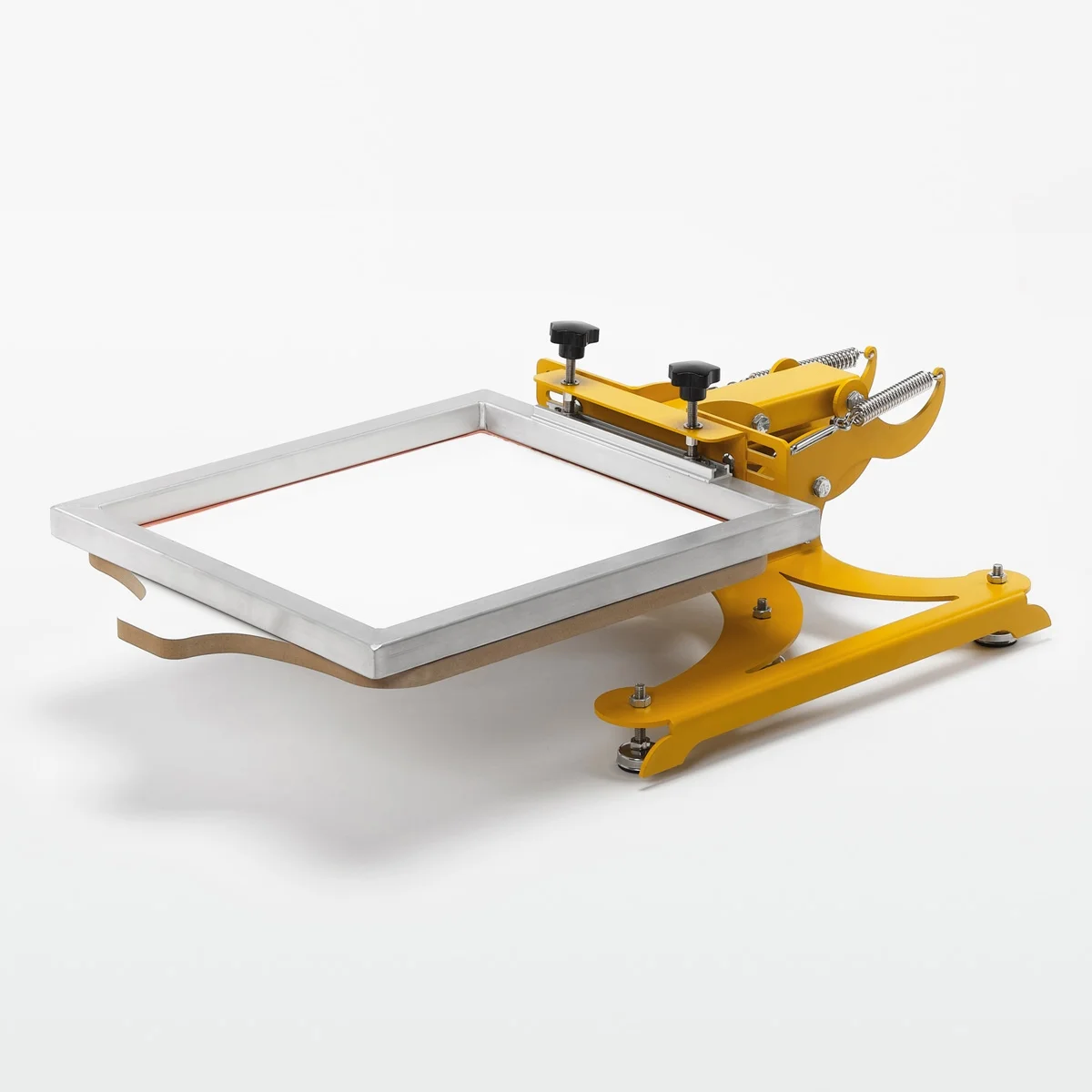

All of our screen printing frames, from small A4 to oversized A2+ frames, can easily be clamped into this machine. The print head accepts frames with a profile thickness of up to 4 cm.

Scope of delivery

FlexoPress screen printing machine with 55 x 45 cm T-shirt-shaped printing plate, assembly tool, assembly instructions

Technical Specifications

The total size of the device without the clamped screen printing frame is 96 cm x 52 cm including the printing plate.
Weight: approx. 16 kg
